The Advantages at a glance:

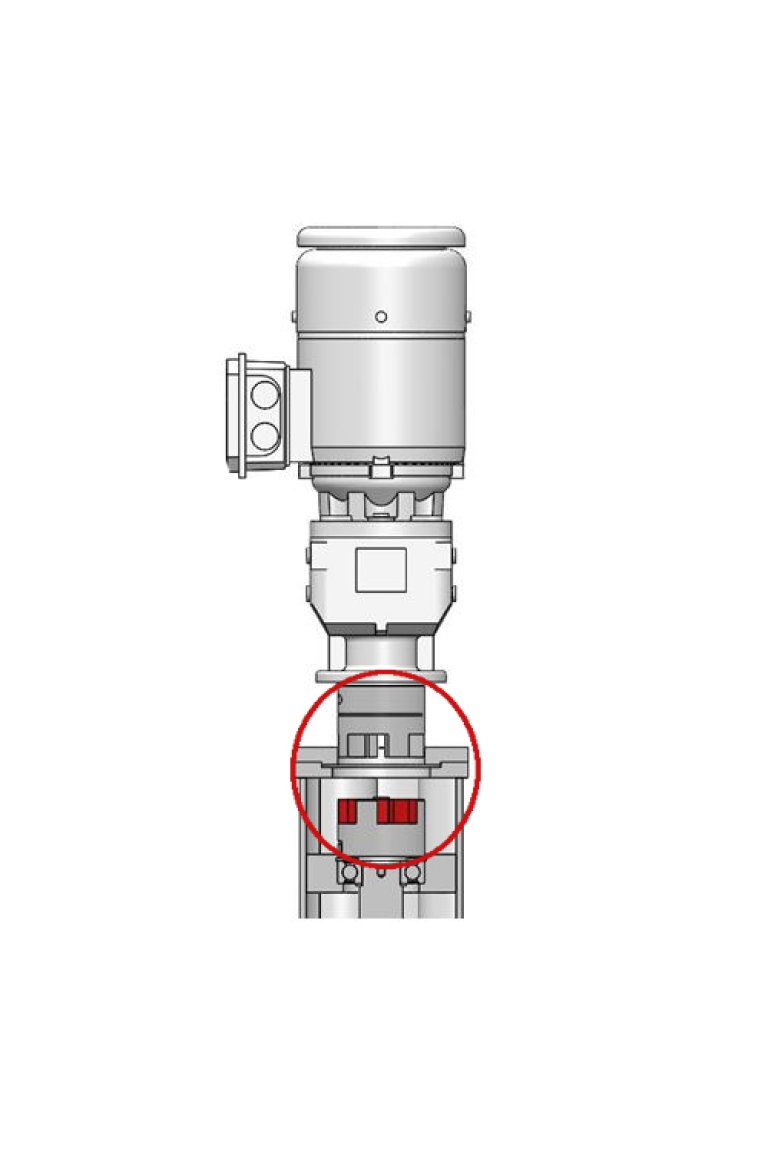

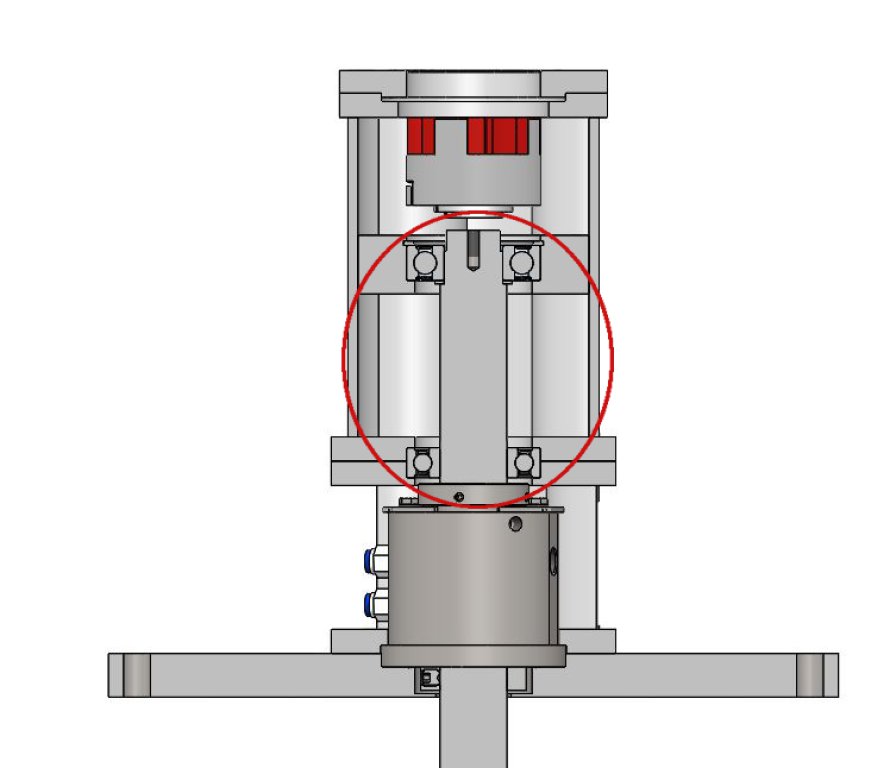

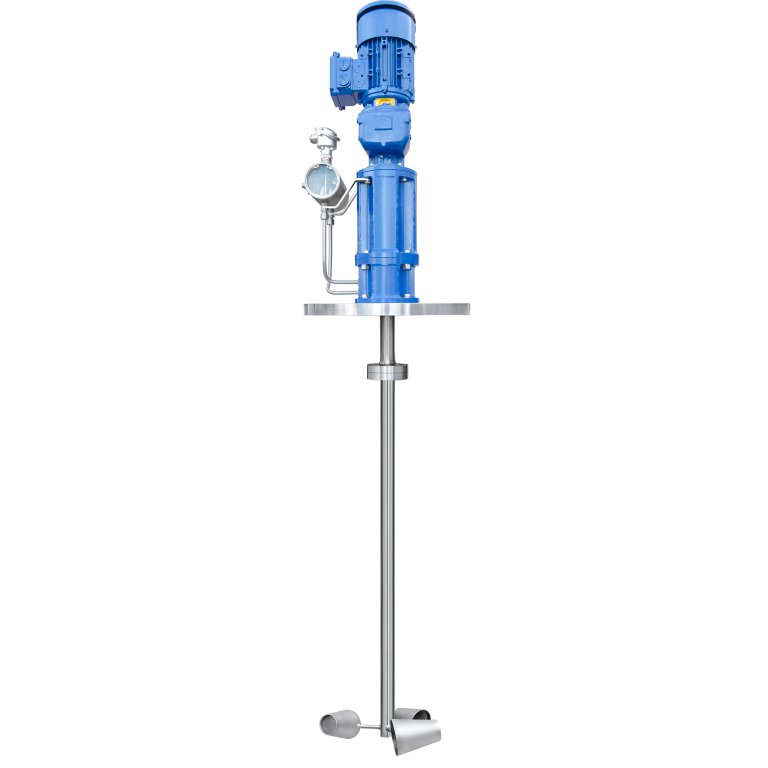

- housing with double bearing and elastic coupling

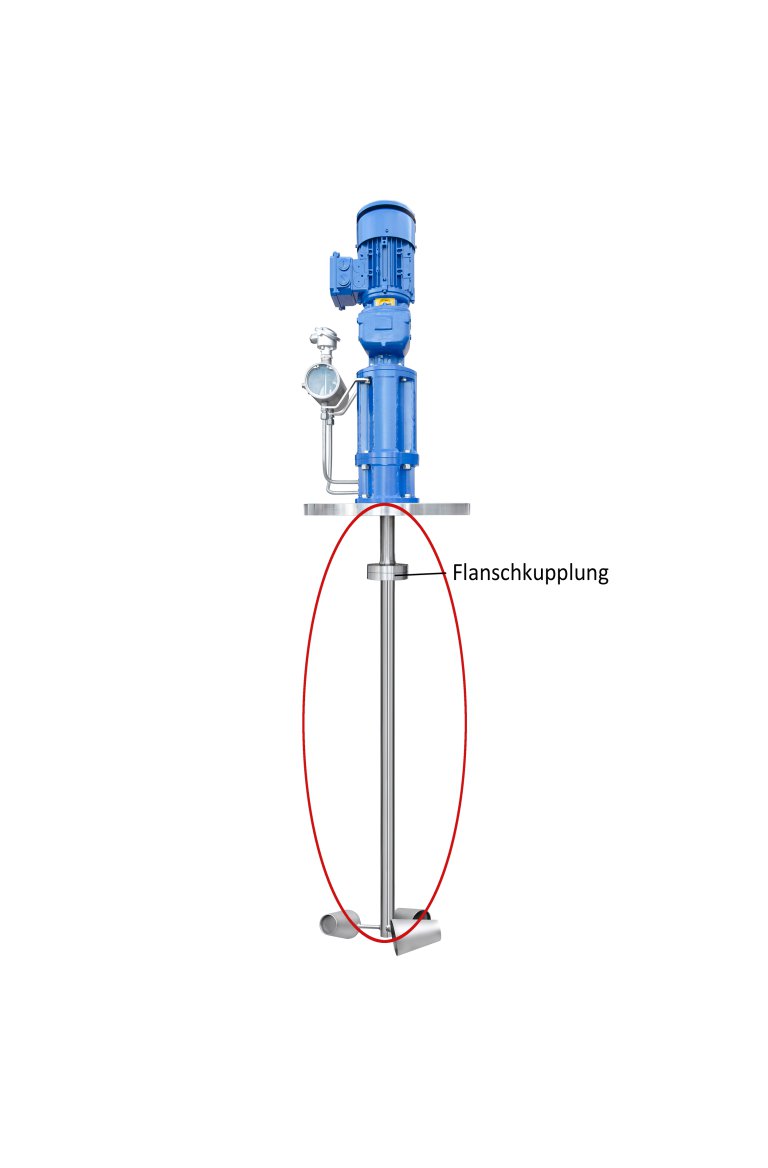

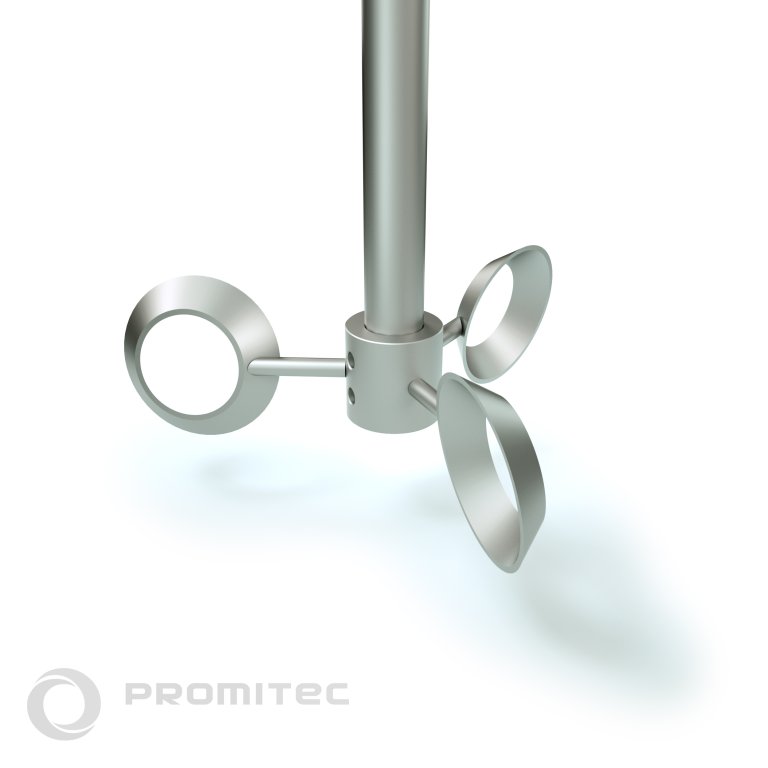

- compact modular systems, can be executed with various agitating systems and shaft lengths, low-cost version
- shaft diameters from 40 - 100mm
- operating pressure up to 7 bar (abs.)
- operating temperature up to 300 °C
- Explosion proofed certificated for Zone 0/1, also with the PROMITEC PSD seal
- quick change of seal and easy dismountable bearing housing, incl. shaftguide device
- various options, e.g. cooling flange, trap shell for seal leakage, flushing flange, speed-measurement

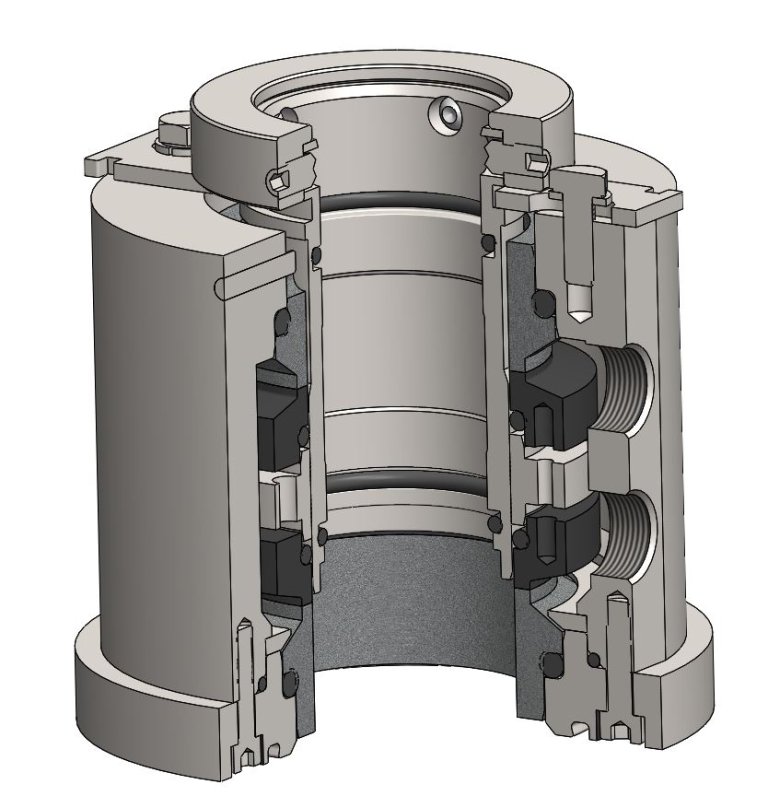

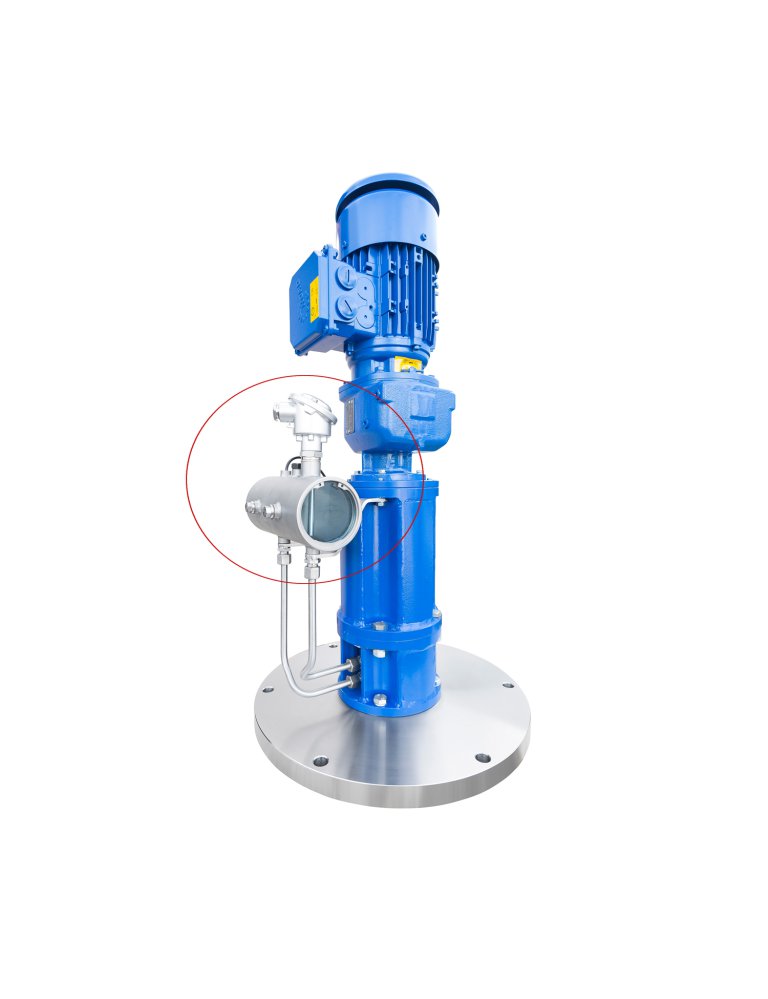

- double-acting mechanical seal PROMITEC PSD with quenching / blocking tank, optioinally also simple sealing designs possible (stuffing box, shaft seal, etc.)
